Compare Kinco GT2 and G2 by software target and full model code before choosing a similarly sized panel. GT2100E and G2100E share representative resolution and cut-out values, while their listed software families differ. Optional wireless and E2 codes add further selection questions. Preserve the existing project, identify the required driver and confirm the documented conversion route before scheduling a machine changeover.
Identify the GT2 Project and Proposed G2 Code
Record the old rear label, hardware revision where shown and target stored in the engineering project. Keep the distinction between the GT2 family and the actual GT2100E code. Likewise, identify the exact G2 destination, including a wireless or E2 suffix if requested. Similar names and front appearances do not establish equivalent hardware or project support.
Preserve the working application and describe the reason for migration. A repair that must retain existing cables has different constraints from a planned network redesign. State whether the cabinet opening, operator workflow, PLC program or maintenance arrangement must remain. These requirements determine which differences can be accepted.
Use the GT2100E product record and G2100E variant record for applicable specifications, manuals and software inquiries. A comparison should retain both identifiers all the way through purchasing. Substituting a broad request for a 10.1-inch panel can remove the suffix information that matters to commissioning.

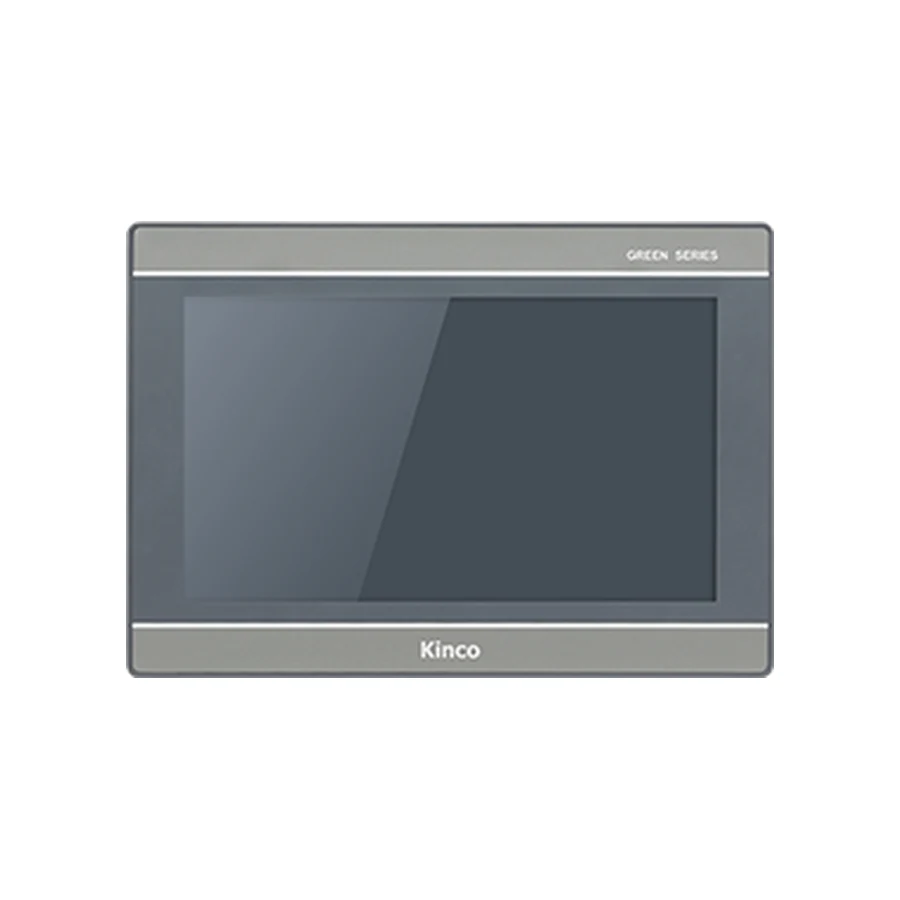

Compare GT2100E and G2100E Display and Fit
The representative base codes share several published values. Those similarities narrow the mechanical and display comparison, but they do not settle the software decision.
| Item | GT2100E | G2100E | Review consequence |
|---|---|---|---|
| Resolution | 1024 × 600 | 1024 × 600 | Compare existing pages without assuming file compatibility |
| Listed opening | 260 × 179 mm | 260 × 179 mm | Verify actual door and mounting conditions |
| Body | 280 × 193 × 36 mm | 280 × 193 × 36 mm | Include plugged-in connectors and cable bends |
| Supply | DC 18 to 28 V | DC 18 to 28 V | Confirm available terminal conditions and wiring |
| Software | DTools | DTools Pro | Establish a supported migration route |
The base-code records also list one Ethernet port and matching headline RAM and flash figures. Those similarities do not prove the application will behave identically after a software-family change. Keep claims about operation attached to actual evaluation results rather than specification resemblance.
Rear Clearance and Existing Connector Access
Measure the actual opening and compare the target installation drawing. Check mounting thickness, clamp access and sealing conditions. Include nearby equipment behind the door, because body depth alone cannot describe the installed envelope. The final arrangement must accommodate connector projection, cable bends and routine service access.
Photograph each used connector and label the cable destination before removal. Verify the new pin assignments and channel mapping from the applicable drawings. A matching connector shell does not establish identical signals. If a cable or channel changes, record that change alongside the project configuration so the installer has one consistent instruction set.
Check DTools Versus DTools Pro Targets
The source example uses DTools for GT2100E and DTools Pro for G2100E. Preserve the original editable project, original package release and external resources before evaluating a new target. A runtime file or functioning panel is not automatically a source project that can be edited or converted.
Matching Resolution Does Not Prove File Compatibility
Resolution describes page dimensions, not project-file structure, supported objects or driver coverage. Confirm the destination model is supported in the intended package and find the conversion documentation applicable to the source. If that route is unconfirmed, keep migration as an open item instead of trying an assumed transfer procedure.
Use an evidence list covering source availability, target availability, documented conversion route, required objects and PLC driver. Include fonts, scripts, recipes and external files where the application uses them. Successful opening or compilation resolves only part of that list.
The project migration guide provides the detailed regression workflow. The Kinco Download Center is the manufacturer reference for matching software and documentation. Retain the package and document versions so a later engineer can reproduce the assessment. No particular menu sequence or release can be prescribed without evidence for the project involved.
Review Wi-Fi, 4G and E2 Requirements
A G2100E base-code comparison does not automatically include G2100E-WIFI, G2100E-4G or G2100E2. Review those codes separately when their options address a real requirement. Do not transfer option names between GT2 and G2 merely because the families sound related.
Base Ethernet Code Versus Optional Suffixes
For each candidate, compare Ethernet count, serial channels, USB roles, supply range, power requirement and installation dimensions. Add the specific radio or additional-port requirement that led to the variant. This prevents a desired feature from obscuring a changed installation condition.
Wi-Fi needs an appropriate site network, permissions and supported maintenance service. Cellular requires a review of regional bands, carrier, SIM, coverage and antenna placement. The Wi-Fi versus 4G guide helps define those site questions. A wireless interface does not itself confirm PLC pass-through or remote-user access.
For an E2 requirement, determine what the additional Ethernet hardware must accomplish. Two ports do not establish independent networks, routing or separation between plant and machine traffic. Obtain the exact code’s documented network behavior and compare it with the site’s architecture. Leave any unsupported separation assumption unresolved.
If wireless maintenance is desirable but not mandatory, keep it distinct from the core production connection. The PLC route must remain supported regardless of whether the remote service is commissioned. A missing maintenance connection and a missing production driver have different consequences and should not share one approval status.
Validate the Converted Screens and PLC Link
Inspect pages at the destination target even though resolution matches. Review long text, language resources, numeric units and limits, navigation, alarm acknowledgments and recipe fields. Identify the old page revision and new revision in the test record so a change can be traced to the intended conversion.
Then test communication separately. Confirm the actual PLC CPU or module, firmware, service and driver settings. Begin with one known read-only value and compare it with the engineering tool. Check freshness, signedness, scaling and the data representation required by the driver. A completed project download is evidence of transfer, not a successful PLC connection.
Any write test should use a designated commissioning variable under conditions approved by the machine owner. Define bounded values and expected behavior, maintain PLC interlocks and keep the PLC responsible for control and safety logic. Remove temporary test controls after the test and verify the finished operator functions through the machine’s commissioning procedure.
Test required alarms, stored information and restart behavior as well as normal page navigation. A working overview does not establish that abnormal-condition handling survived the migration. Record failures individually and assign corrections before production restart.
Document the Changeover and Rollback Decision
Maintain a change record containing old and new codes, software releases, project revisions, driver evidence, wiring changes and acceptance results. Name the reviewer, responsible engineer and approval date for each critical item. Separate pre-order suitability from commissioning after installation.
Set rollback triggers before removing the old panel. Examples include unstable required communication, unresolved critical alarms or a failed essential operator action. Keep the original source, working settings and old panel available where practicable, and identify who authorizes reinstating the previous configuration. Rollback must use the recorded cable and project arrangement.
Send the open-item list with quantity, destination and document requirements when requesting a quotation. A candidate with an unresolved conversion route should remain visibly pending. Matching display and opening values make comparison easier; approval still depends on evidence for the actual machine.
Frequently Asked Questions
Can GT2100E and G2100E share an opening but need different software?
Yes. Their representative records share a 260 × 179 mm opening while listing DTools and DTools Pro respectively. Confirm mounting and migration independently.
Does matching resolution prove project compatibility?
No. It describes the pixel grid. File conversion, supported objects, drivers and application behavior require separate evidence and tests.
Which G2 variants need a separate interface review?
Review every requested wireless or E2 suffix against its own record. Compare the interface set, power and installation requirements, plus the site or network conditions that make the option useful.
